cisco-catalyst-9300l-24uxg-4x-m-meraki switch

Top Ranking SEO Description:

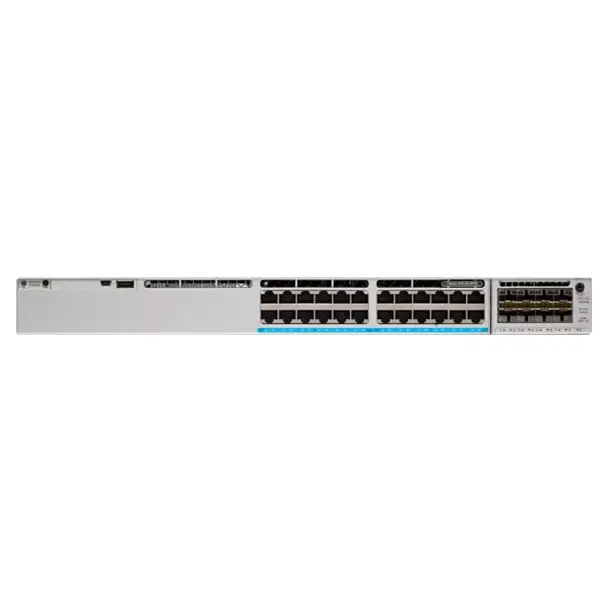

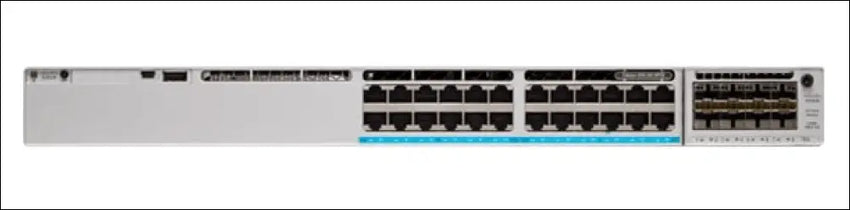

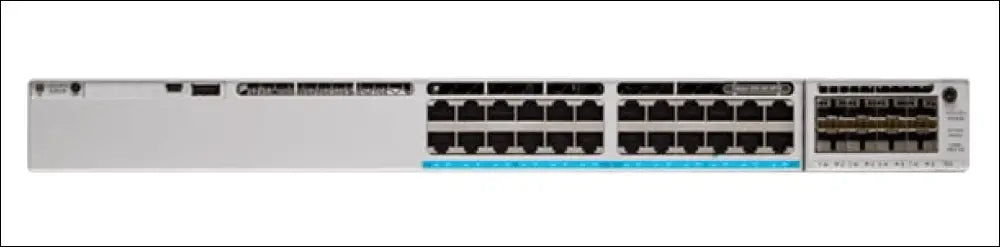

Cisco Meraki Catalyst C9300L-24UXG-4X-M Switch: Unleash 10 Gigabit Power with Effortless Cloud Management

Future-proof your network with the Cisco Meraki Catalyst C9300L-24UXG-4X-M switch. This powerful cloud-managed Layer 3 switch combines the robust performance of Cisco Catalyst with the simplicity of the Meraki dashboard. Featuring 24 x 10 Gigabit (mGig) ports with up to 60W uPoE, 4 x 10G SFP+ uplinks, and 320 Gbps stacking, it's ideal for high-bandwidth applications and the latest Wi-Fi 6/6E deployments. Simplify management, enhance security with future Adaptive Policy, and scale your network with ease.

FAQ: Cisco Meraki Catalyst C9300L-24UXG-4X-M Switch

• What are the key features of the Cisco C9300L-24UXG-4X-M?

  • 24 x 10 Gigabit Ethernet (mGig) ports (100M/1G/2.5G/5G/10G) with PoE/PoE+/uPoE (up to 60W per port).
  • 4 x 10G SFP+ fixed uplinks for high-speed connectivity.
  • 880W PoE budget, expandable to 1440W with an optional secondary power supply.
  • 272 Gbps switching capacity for smooth data flow.
  • 320 Gbps stacking bandwidth for up to 8 switches (requires C9300L-STAK-KIT2-M).
  • Cloud-based management via the intuitive Meraki dashboard.
  • Layer 3 routing capabilities for scalable network design.
  • Future support for Secure Connect and Adaptive Policy (with Advanced License).

  • What is mGig and why is it important?

    • mGig stands for multi-gigabit Ethernet. The 10GBASE-T ports on this switch support speeds of 100Mbps, 1Gbps, 2.5Gbps, 5Gbps, and 10Gbps over standard copper cabling (Cat5e or higher recommended, Cat6a for optimal 10G performance). This allows you to connect devices with varying bandwidth requirements at their maximum speed without requiring new cabling in many cases, future-proofing your infrastructure for faster devices like Wi-Fi 6/6E access points



    • What is uPoE and how much power does it provide?

      • uPoE (Universal Power over Ethernet), also known as IEEE 802.3bt, can deliver up to 60W of power per port. This is in addition to PoE+ (up to 30W) and PoE (up to 15.4W). The high PoE budget of this switch enables you to power a wide range of devices, including high-powered wireless access points, PTZ security cameras, and digital signage



        How is the Cisco C9300L-24UXG-4X-M managed?

      • • This switch is centrally managed through the Cisco Meraki cloud dashboard. This provides a single pane of glass for configuration, monitoring, and troubleshooting, simplifying network operations and reducing IT overhead. Zero-touch provisioning allows for easy deployment without on-site configuration.

        • Does this switch support stacking?

          • Yes, it supports physical stacking of up to 8 switches using the optional C9300L-STAK-KIT2-M stacking kit. This provides up to 320 Gbps of stacking bandwidth, enhancing redundancy and simplifying management of multiple switches as a single logical unit. Virtual stacking is also supported for managing thousands of ports as one entity.

          • What kind of uplinks does this switch have?

            • It features four fixed 10G SFP+ uplinks. These ports can accept 1G or 10G Small Form-factor Pluggable Plus (SFP+) transceivers, providing high-speed connections to core switches, routers, or other high-bandwidth devices using fiber optic cables
