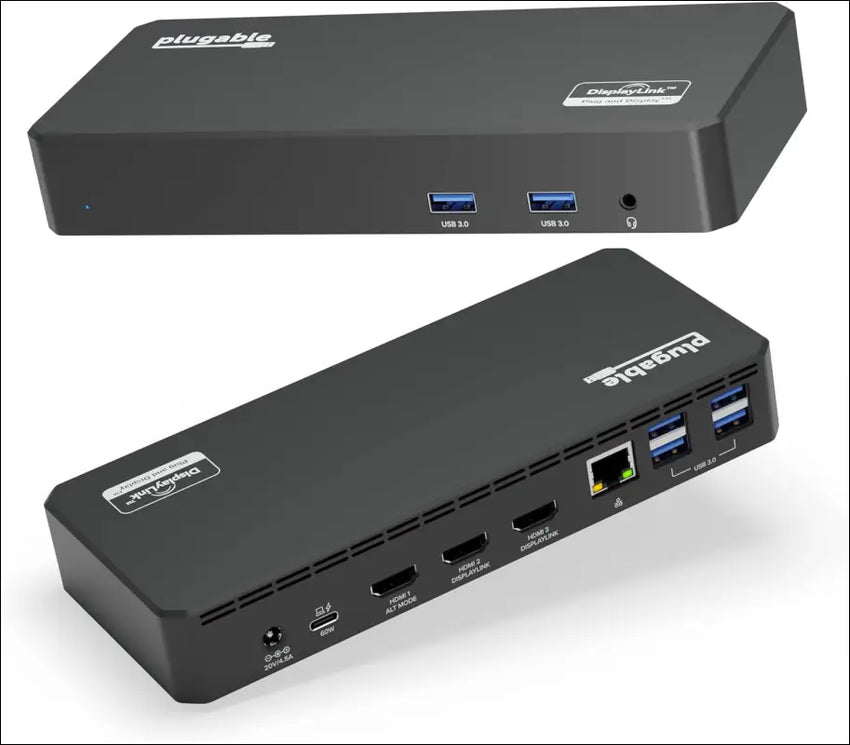

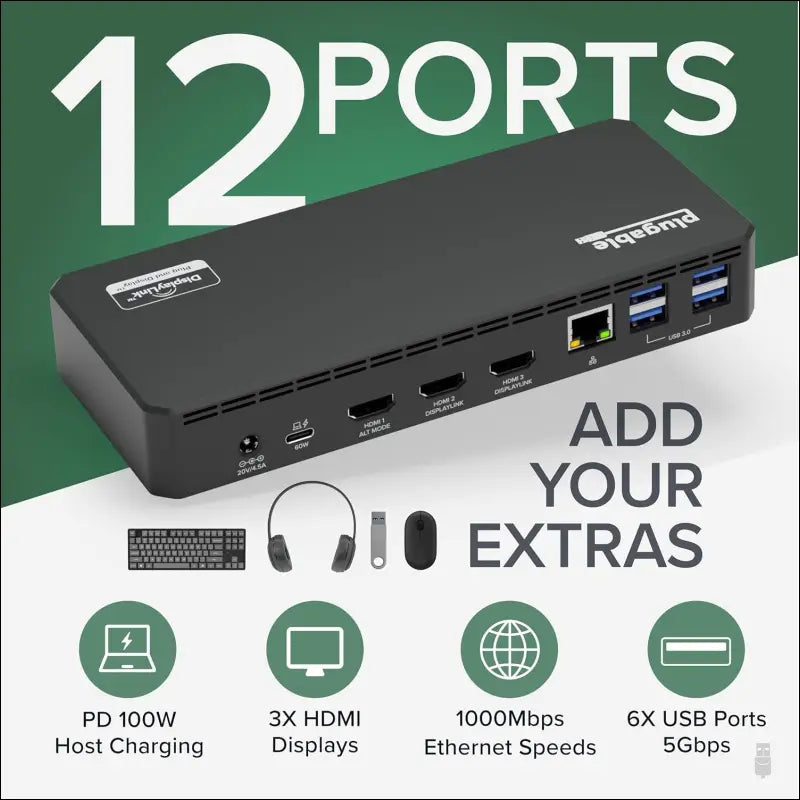

12-in-1 EXPANSION - Transform your compatible USB-C or Thunderbolt 3 Windows or Mac laptop into a full workstation with this versatile laptop docking station. It offers device charging, supports up to three HDMI monitors, provides Gigabit Ethernet connectivity, includes a 3.5mm TRRS headset jack for audio, and expands your connectivity with six USB 3.0 ports for peripherals.
TRIPLE MONITOR DISPLAY - This USB C triple display docking station lets you extend your visual workspace across three HDMI monitors. Enjoy one HDMI output supporting resolutions up to 4K at 30Hz, and two additional HDMI outputs supporting 1080p at 60Hz, all powered by DisplayLink USB Graphics Technology. This is especially useful when your computer does not natively support three displays.
USB-C FEATURES - This multiport docking station leverages the power of USB-C, supporting USB-C DP "Alternate Mode" for a direct connection to one external display, utilizing your system's graphics processor for optimal performance. It also features USB-C Power Delivery, allowing you to charge your connected laptop. Please check your laptop manufacturer's specifications to ensure compatibility with these features.
COMPATIBILITY - The docking station is compatible with USB Type-C and Thunderbolt 3 Macs (macOS 10.14 and above, with driver installation), Windows laptops (including Dell XPS, Lenovo Thinkpad, and HP Spectre x360), and other systems that support USB-C DP Alt Mode and Power Delivery. Note that HDCP is not supported, and Linux and Chrome OS are not currently supported.
2 YEAR WARRANTY - We stand behind our Plugable products. This display docking station is backed by a 2-year limited parts and labor warranty, and our Seattle-based email support team is ready to assist you.Product Description
Tech Specs

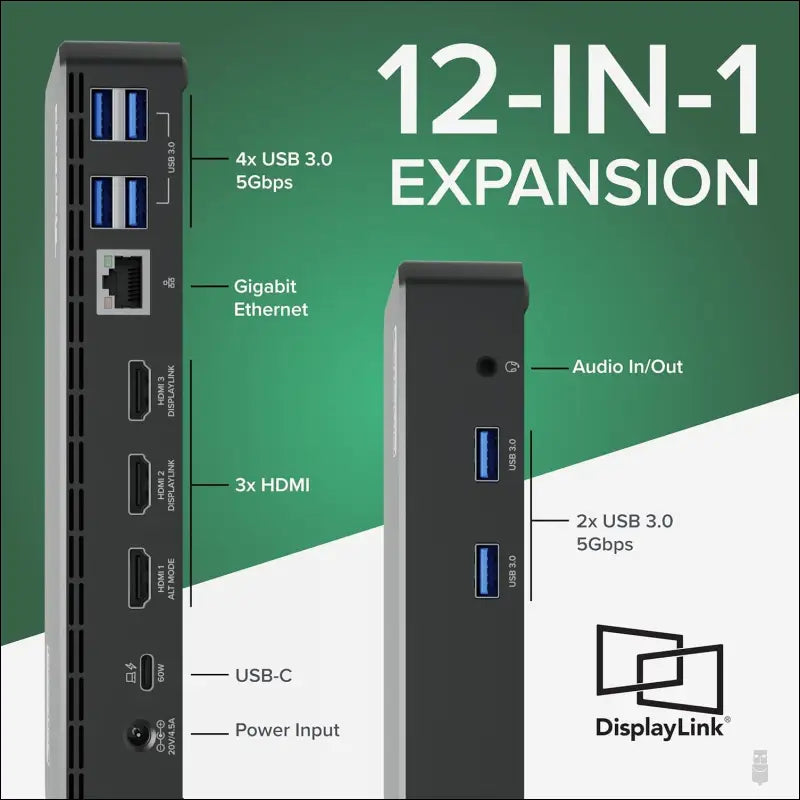

USB-C To Host | USB 5Gbps Type-C, DisplayPort Alternate Mode 1.2, USB Power Delivery | HDMI 1 | Up to 4K UHD (3840x2160) at 30Hz refresh rate, lower resolutions up to 60Hz refresh rate | HDMI 2 & HDMI 3 | Up to 1080P (1920x1080) at 60Hz refresh rate with DisplayLink USB graphics technology | 6x USB 5Gbps | USB Standard-A 5Gbps ports | 1x 3.5mm Audio | TRRS Headset port, supports stereo audio and mono microphone, or stereo speakers/headphones | Do I need to install software in order to use the device?
Yes, DisplayLink software is required for the UD-3900PDZ for full functionality. Manual installation is required for macOS, Windows installation is typically automatic. We recommend installing the latest DisplayLink software for the best performance.
When installing DisplayLink software on my Mac, why is it necessary to grant ‘Screen Recording’ permission?
macOS requires "Screen Recording" for the DisplayLink driver to work properly. Approving it enables the driver to send data over USB from your computer to the DisplayLink-powered display. No data, images, or pixels are being stored or recorded.
Does this dock allow for three displays even on base Apple M-Series Macs?
Yes. Enabled by DisplayLink technology, UD-3900PDZ can connect three displays even if the computer supports only one display output on its own. DisplayLink Manager installation required on Mac.
Which USB-C port on the dock can be used to connect my computer?
The USB-C port on the rear of the dock is dedicated for connecting your laptop. The front port is a hub port only, so it doesn’t work to connect a computer to the dock.
Why aren’t all three displays connecting to my dock?
Please confirm your laptop’s USB-C port supports video output (Alt mode), that the docking station is connected to the computer with the USB-C data cable provided with this dock, and that you have the DisplayLink driver/software installed.
